New Groundwater Formation 2005

Map Description

In the areas with open aquifers, new groundwater formation rates correspond to the percolation rates shown in Map 02.13.2. The new groundwater formation rates shown in the map are lower than the percolation water rates in the areas with covered aquifers, depending on the conditions and the reduction factors ascertained. In the areas with covered aquifers, a reduction of at least 18% (Wuhle) and at most 76% (Tegel Creek) above the percolation water rates occurs; in most areas with covered aquifers, the new groundwater formation rate is approx. 40 % – 50 % below the percolation water rate.

The area shares of the different percolation water rates according to Map 02.13.2 and the derived new groundwater formation rates (Map 02.17) are shown in Tab. 2. The category with 100-150 mm/yr. predominates. Due to the reduction in the covered areas, a shift from higher to lower values occurs in the new groundwater formation values, as compared with the percolation water rate, which is primarily evident in the mean values. Thus, the section shares of the category 50 – 100 mm account for 4.6% of the percolation water rate, but for only 18.1% the new groundwater formation rate. On the other hand, the section shares for percolation water rates of the categories above 150 mm are consistently greater than for new groundwater formation rates.

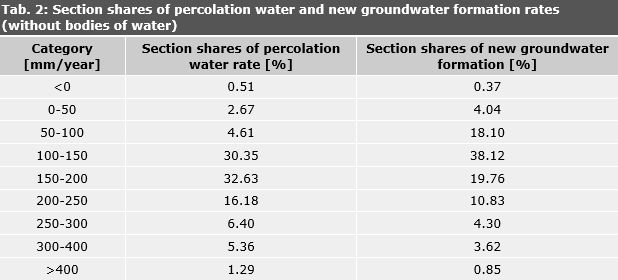

Tab. 2: Section shares of percolation water and new groundwater formation rates (without bodies of water)

Tab. 2: Section shares of percolation water and new groundwater formation rates (without bodies of water)

The totals for the area of the State of Berlin can be derived from the new groundwater formation rates, with consideration for section sizes. In Tab. 3, these values have been juxtaposed to the corresponding values for total runoff formation and percolation water formation:

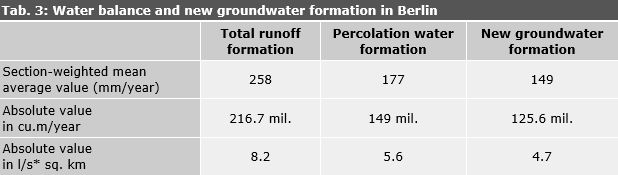

Tab. 3: Water balance and new groundwater formation in Berlin

Tab. 3: Water balance and new groundwater formation in Berlin

h5. Remarks:
All values exclusive of bodies of water. Shore filtrate shares (which e.g. are discharged in the Berlin waterworks from the Havel and Spree) are not taken into account in percolation water formation or new groundwater formation.

It has to be taken into account that the calculations for percolation water rates were carried out with consideration for imperviousness. This means that the stated values for new groundwater formation give mean values covering pervious and impervious areas of the block sections including the surrounding traffic areas represented. Since the imperviousness and the different availability of sewers affect the water balance considerably, the stated values are not transferable to the pervious areas of the respective sections.
